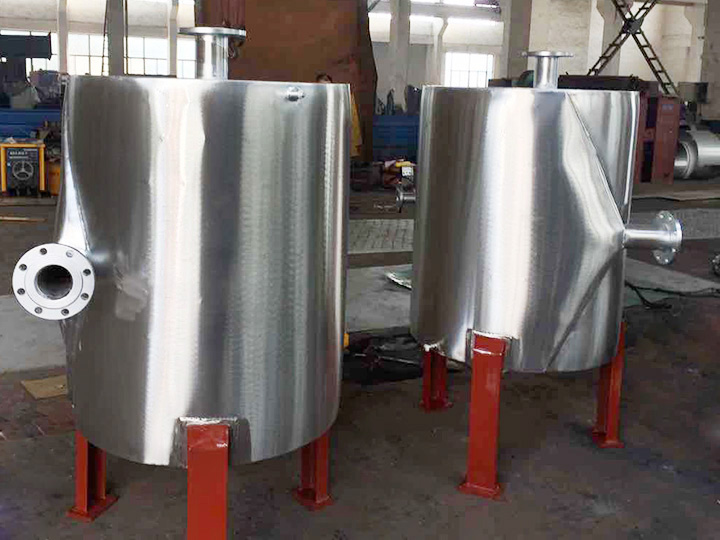

产品介绍
螺旋板换热器技术参数：
|
公称换热面积m2
|
通道间距mm
|
计算
换热面积
m2
|
流 速
1m/ces时
处理量m3/h
|
接管公称直径
|
型 号
|
重量(kg)
|
|
I 6B型
|
I 16B型
|
|
1
|
6 |
1.0 |
3.89 |
40 |
I 6,I 16B1-0.2/300-6 |
44 |
50 |
|
2
|
6 |
2.1 |
3.89 |
40 |
I 6,I 16B2-0.2/400-6 |
78 |
85 |
|
4
|
6 |
4.4 |
8.2 |
50 |
I 6,I 16B4-0.4/400-6 |
131 |
135 |
| 10 |
4.5 |
17.3 |
80 |
I 6,I 16B4-0.5/450-10 |
129 |
133 |
| 10 |
4.8 |
13.7 |
70 |
I 6,I 16B4-0.4/500-10 |
161 |
205 |
|
8
|
6 |
7.3 |
8.21 |
50 |
I 6,I 16B8-0.4/500-6 |
212 |
215 |
| 10 |
7.85 |
17.3 |
80 |
I 6,I 16B8-0.5/550-10 |
235 |
273 |
| 10 |
7.3 |
20.90 |
80 |
I 6,I 16B8-0.6/500-10 |
237 |
275 |
|
10
|
6 |
11.1 |
8.21 |
50 |
I 6,I 16B10-0.4/600-6 |
295 |
355 |
| 10 |
11.5 |
17.3 |
80 |
I 6,I 16B10-0.5/650-10 |
315 |
405 |
| 10 |
11.2 |
20.90 |
80 |
I 6,I 16B10-0.6/600-10 |
305 |
395 |
|
15
|
6 |
16.9 |
12.54 |
70 |
I 6,I 16B15-0.6/600-6 |
415 |
490 |
| 10 |
14.72 |
17.3 |
80 |
I 6,I 16B15-0.5/760-10 |
405 |
575 |
| 10 |
15.0 |
28.1 |
80 |
I 6,I 16B15-0.8/600-10 |
400 |
570 |
| 14 |
15.6 |
39.3 |
100 |
I 6,I 16B15-0.8/700-14 |
505 |
680 |
|
20
|
6 |
21.7 |
8.21 |
50 |
I 6,I 16B20-0.4/800-6 |
540 |
710 |
| 10 |
21.0 |
20.90 |
80 |
I 6,I 16B20-0.6/800-10 |
555 |
735 |
| 14 |
20.9 |
39.30 |
100 |
I 6,I 16B20-0.8/800-14 |
660 |
830 |
|
25
|
10 |
26.6 |
29.90 |
80 |
I 6,I 16B25-0.6/900-10 |
610 |
950 |
| 14 |
26.9 |
39.20 |
100 |
I 6,I 16B25-0.8/900-14 |
720 |
1060 |
|
30
|
10 |
28.2 |
28.10 |
100 |
I 6,I 16B30-0.8/800-14 |
750 |
1180 |
| 14 |
32.2 |
39.20 |
100 |
I 6,I 16B30-0.8/1000-14 |
980 |
1370 |
|
40
|
10 |
45.4 |
35.30 |
100 |
I 6,I 16B40-1.0/900-10 |
1130 |
1515 |
| 14 |
40.2 |
19.4 |
125 |
I 6,I 16B40-1.0/1000-14 |
1200 |
1630 |
|
50
|
10 |
53.9 |
35.3 |
100 |
I 6,I 16B50-1.0/1000-14 |
1360 |
1755 |
|
60
|
10 |
61.05 |
35.3 |
100 |
I 6,I 16B60-1.0/1100-10 |
1920 |
2112 |
| 14 |
60.08 |
49.40 |
125 |
I 6,I 16B60-1.0/1200-14 |
2000 |
2200 |
|
80
|
10 |
81.83 |
35.3 |
100 |
I 6,I 16B80-1.0/1200-10 |
2560 |
2816 |
| 14 |
80.9 |
49.40 |
125 |
I 6,I 16B80-1.0/1400-14 |
2667 |
1934 |
|
100
|
10 |
101.9 |
35.3 |
100 |
I 6,I 16B100-1.0/1300-10 |
3200 |
3520 |
| 14 |
100.06 |
49.40 |
125 |
I 6,I 16B100-1.0/1500-14 |
3333 |
3666 |
|
120
|
10 |
115.5 |
35.3 |
100 |
I 6,I 16B120-1.0/1500-10 |
3870 |
4257 |
| 14 |
119.0 |
49.40 |
125 |
I 6,I 16B120-1.0/1700-14 |
4020 |
4422 |
|
130
|
14 |
128.80 |
49.4 |
125 |
I 6,I 16B130-1.0/1750-14 |
4241 |
4665 |
| 18 |
129.09 |
63.5 |
150 |
I 6,I 16B130-1.0/1967-18 |
4462 |
4908 |
|
150
|
14 |
148.1 |
49.4 |
125 |
I 6,I 16B150-1.0/1890-14 |
4702 |
5172 |
| 18 |
148.2 |
63.5 |
150 |
I 6,I 16B150-1.0/2010-18 |
4962 |
5458 |
